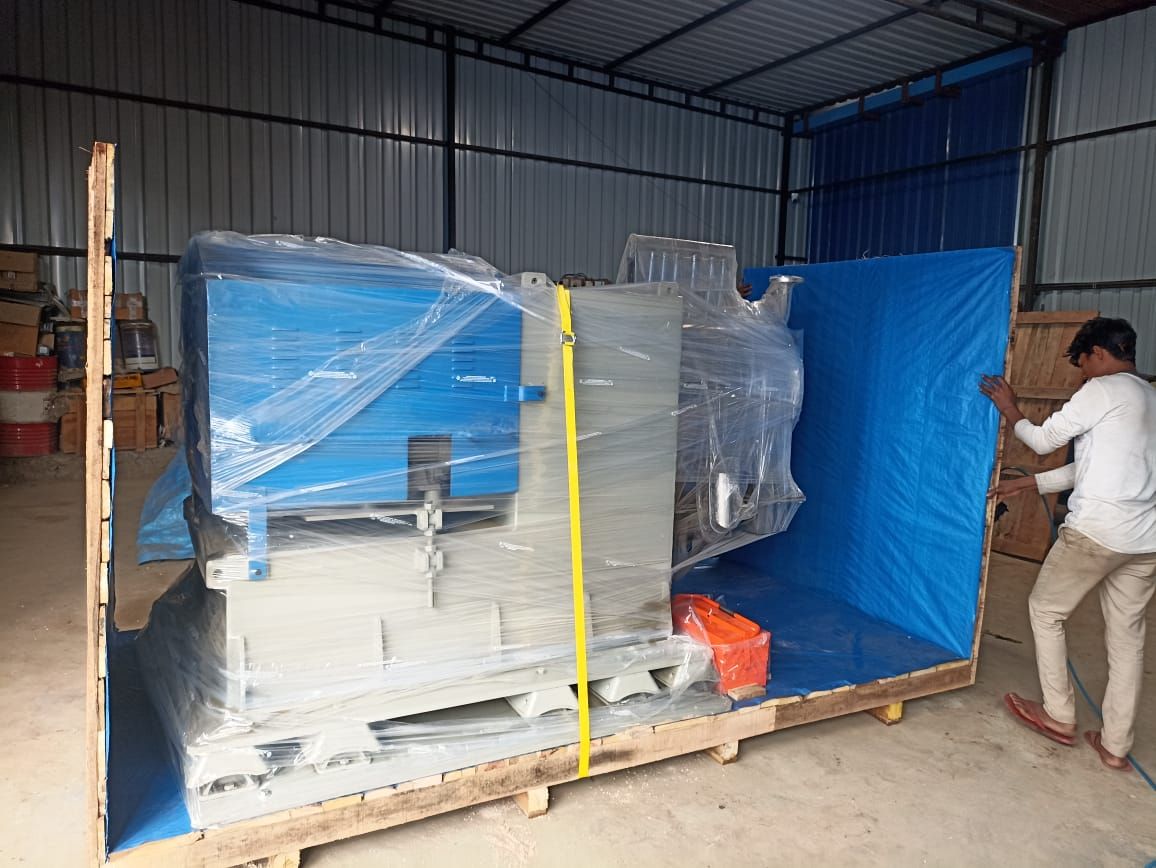

RT4 Pusher Centrifuge Machine

PUSHER CENTRIFUGES Advantages

• High product quality and increased performance through proper selection of basket configuration, feed accelerator, and screen

• Simple and easy maintenance with service-friendly design

• Choice of mechanical or hydraulic drives

• Quick installation on vibration dampers

• High yield, throughput, and wash efficiency

• Low energy consumption

• No spillage

• Eliminates manual handling

• Low-cost and simple maintenance

• Requires less floor space

Pusher Operation

• Solids collect on the screen and feed liquors drain through

• The pusher plate rotates with the basket and reciprocates

• On forward stroke, solids are pushed along the screen

• Solids consolidate into a uniform cake

• On reverse stroke, fresh screen surface is exposed for new slurry

• Cake dries as it moves along the screen; wash liquor removes impurities

• Cake is pushed off the discharge end into the collection chute

Applications

Suitable for a wide range of crystalline inorganic salts and chemicals, including:
ABS, Ammonium Chloride, Ammonium Sulphate, Borax, Common Salt, Cellulose Acetate, Nitrocellulose, Potassium Carbonate, Potassium Chloride, Oxalic Acid, Sodium Chloride, Ferrous Sulphate, Dichlorobenzene, Hydroquinone, Hexamine, Nickel Sulphate, Lithium compounds, Sodium Bicarbonate, Sodium Carbonate, Sodium Chlorate, Sodium Cyanide, Urea, and more.

Main Features

• Process: Continuous

• Solid Content: > 25% by weight

• Particle Size Range: 80 – 2000 μm

• Solid Throughput: 400 – 25000 kg/hr

• Solid Recovery: > 98%

• MOC: Stainless steel and special materials

Operational Requirements

• Product Structure: Crystalline

• Minimum Particle Size: 80 μm

• Maximum Particle Size: ~2000 μm

• Feed Requirements: High solid content & uniform slurry concentration

Main Components & Spares

• Main Shaft & Pusher Shaft

• Basket (1st & 2nd Stage)

• Sieve Segments / Screen

• Pusher Hub & Pusher Plate

• Front & Rear Bushes

• Excluder Seals

Basis of Throughput

• 50% Salt–Water slurry

• Crystalline salt (NaCl)

• 3% moisture content

• Bulk Density: 1225 kg/m³

• 99% product is 100 mesh or larger
